Électrolyseur Tiny 80 – Jusqu’à 55 m³

Welcome to the top of the range! The Tiny 80 is the economical solution for pools up to 50 m³ without stabilizer and 55 m³ with stabilizer .

Enjoy crystal clear water , without chemicals and with minimal maintenance . Thanks to the world’s most durable electrolysers , your pool becomes healthy , easy to maintain and environmentally friendly .

À partir de 1595,00 €

Description
Fiche technique
Contenu
Téléchargements

Description

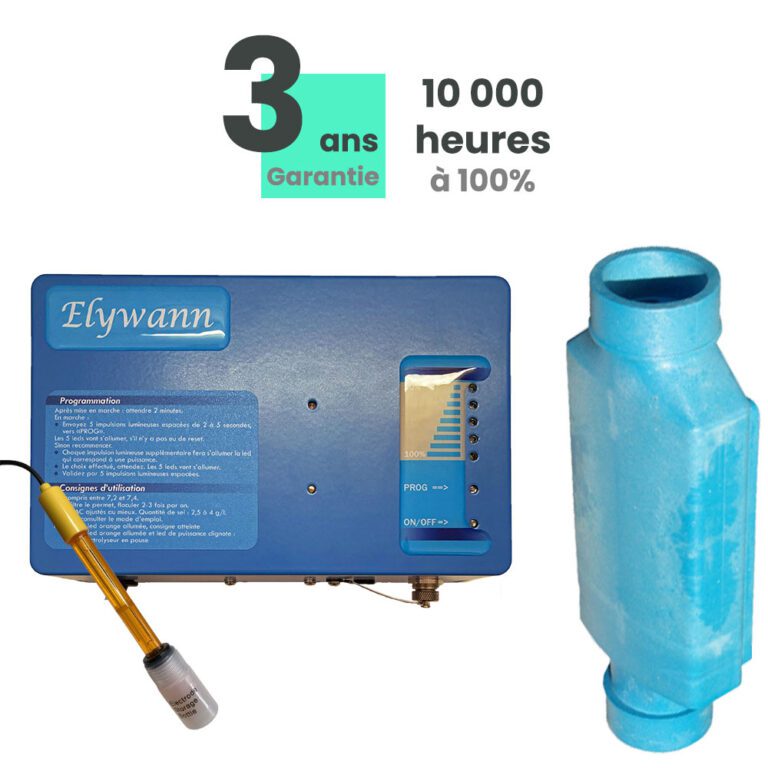

The Elywann Tiny 80 electrolyser ensures effective disinfection of your pool water. Designed for pools up to 50 m³ without stabilizer and 55 m³ with stabilizer . Thanks to its advanced technology, it guarantees crystal clear water without harsh chemicals and minimal maintenance.

The Tiny cell has been designed to combine ease of access and longevity . Choose high-performance, sustainable and ecological technology . Benefit from high-end manufacturing quality , simplified installation and unrivaled comfort for your pool.

Important note: If your water is soft (below 15°F), you can request a custom program when ordering. Elywann can then extend the life of the cell by adjusting the polarity reversal cycle to 8 or 12 hours.

Additional Information

SKU: TINY-80

Weight: 6.15kg

Dimensions: Array

Fiche technique

Actual chlorine production 18 g/h
Flow rate in the cell 8 to 15 m³/h (beyond this, install a bypass)
Average power consumption 80 W
Number of electrodes 4
100% electrode life 10,000 hours
Power supply cable for the control box 2 meters
Electrolysis cell power supply cable 2 meters
Amount of salt required 3.5 to 4 g/L
Amount of stabilizer 0 to 15 mg/L
Water hardness Between 10 and 35°F (beyond that, contact us)
Water temperature 10 to 40°C
Entrance/exit Ø 50 mm
Polarity reversal Yes (every 4 to 12 hours depending on the hardness)
Redox Management Yes
BOOST function (chlorine shock) Yes: 100% operation then automatic shutdown after 36 hours of operation (24 hours if the water is hard) if the user does not intervene.
Detection of roller shutter and minimum and interrupted flow Yes
Detection and alert of minimum and maximum salt levels, minimum temperature Yes
Zero flow/lack of water in the cell alert Yes
Power programming Optics with LED programming key
Wall mount Not included

Contenu

Téléchargements

Installation and operating instructions

Garantie exceptionnelle

Cell guaranteed for 3 years, box for 2 years. Non-decreasing, including wear of the electrodes.

Ultra longue durée de vie

Designed to last 5 to 8 years depending on use.

Consommation énergétique ultra faible

Up to 70% energy savings, or at least 3 times less than our competitors.

Gestion Redox automatique et performante

Automatic regulation of disinfectant production. Essential for indoor pools.

Inversion de polarité automatique et intelligente

Self-descaling of the cell (every 4 hours) which adapts to the water hardness.

Matériaux haut de gamme

Aluminum case coated with a double-layer anti-corrosion paint, ultra-resistant cell in fiber-reinforced ABS, resistant and durable electronic components, high-quality titanium electrodes.

Insensible à l'humidité (IP67)

Completely dustproof and waterproof to a depth of 1 meter for 30 minutes.

Rayonnements électromagnétiques ultra faibles

Our electrolysers are free from electromagnetic radiation, thus offering protection to electro-sensitive individuals.

Fabriqué en France

Choosing Elywann means supporting French artisans and industry. Our subcontractors are based in the Occitanie region.
